Widefield Microscopes
Widefield microscopes available in the Platform, including specifications and location:
These are classified as core light microscopes for costing purposes.
Back to main Light Microscopy page
| PPMS System Name | Zeiss AxioObserver.Z1 Widefield |
| Department (Room) | Pathology (314 annex) |
| Frame type | inverted |

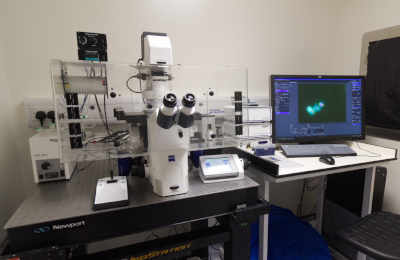

| System Image |  |
| Objectives | 5x/0.16, EC PlanNeofluar Ph1 DIC0, 18.5 mm, Dry (Air), 420331-9911-000 |
| 10x/0.3, EC PlanNeofluar Ph1 DICI, 5.2 mm, Dry (Air), 420341-9911-000 | |
| 20x/0.4, LD PlanNeofluar Ph2 DICII, 7.9 mm, Dry (Air), 421351-9970-000 | |
| 40x/0.6, LD PlanNeofluar Ph2 DICII, 2.9 mm, Dry (Air), 421361-9970-000 | |
| 63x/1.4, PlanApochromat Ph3 DICII, 0.19 mm, Oil, 420781-9910-000 | |
| 100x/1.4, PlanApochromat DICII, 0.17 mm, Oil, 420792-9900-000 | |
| Lasers/Lightsource | HXP120 fluorescence light source |
| DAPI (FS01) | |
| GFP (FS38HE) | |
| DsRed (FS43HE) | |
| mPlum (FS64HE) | |
| Cy5 (FS50) | |
| Detectors/Cameras | AxioCam HRm (monochrome) |
| AxioCam HRc (colour) | |
| Live Imaging (options) | Yes (Incubation) |
| Z drift compensation | Definite Focus (Zeiss) |
| Capabilities | Tilescans |
| Positions | |
| 3D volumes | |
| Acquisition Software | Zen Blue 3.5 |
