Light Sheet Microscopes
Light Sheet microscope available in the Platform, including specifications and location:
These are classified as advanced light microscopes for costing purposes.
Back to main Light Microscopy page
| PPMS System Name | Zeiss Lattice Light Sheet 7 |
| Department (Room) | PDN (Anatomy Building, 22A) |
| Frame type | inverted |

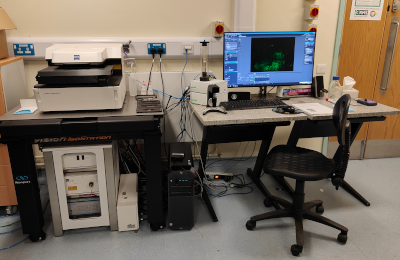

| System Image |  |
| Objectives | Illumination 13.3x/0.4 |
| Detection 44.83x/1.0, Water | |
| Lasers/Lightsource | 488 nm |
| 561 nm | |
| 640 nm | |
| Detectors/Cameras | PCO Edge sCMOS camera |
| Live Imaging (options) | Yes (Incubation, CO2, Humidity) |
| Z drift compensation | Software based |
| Capabilities | Fast |
| Gentle | |
| Tilescans | |
| Positions | |
| 3D volumes | |
| Acquisition Software | Zen Blue 3.8 |
